8XE MIG Fume Extraction

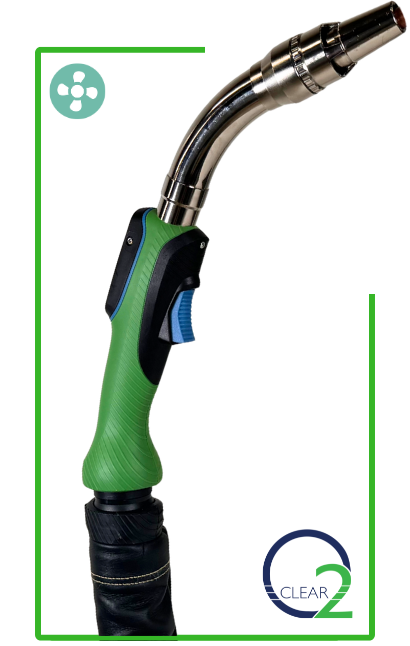

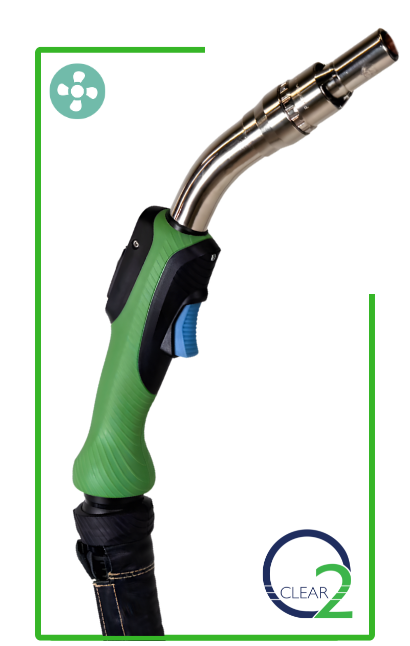

8XE FUME EXTRACTION MIG TORCHES

SAFE & EFFECTIVE EXTRACTION OF WELDING FUMES DIRECTLY AT THE SOURCE

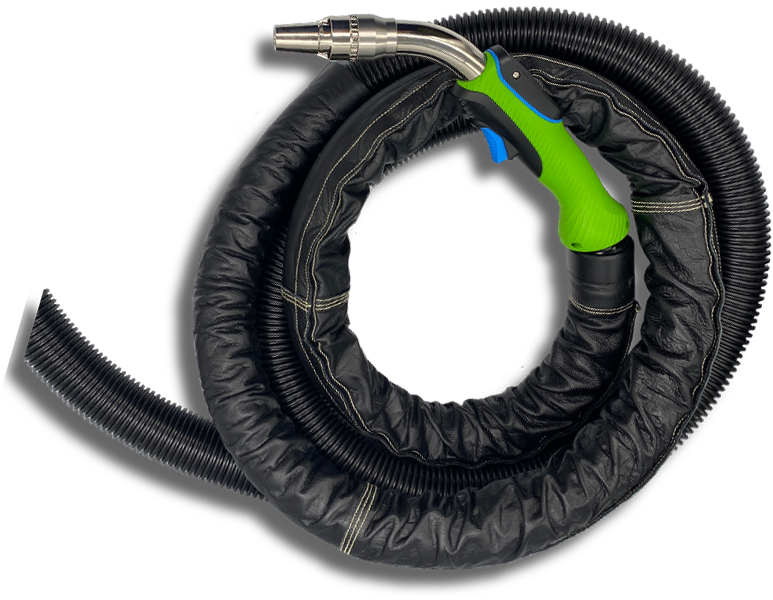

The 8XE MIG Fume Extraction Torch features the most advanced and efficient fume extraction design in the welding industry. Available in three configurations 30°, 45°, and straight. It adapts to a wide range of welding applications.

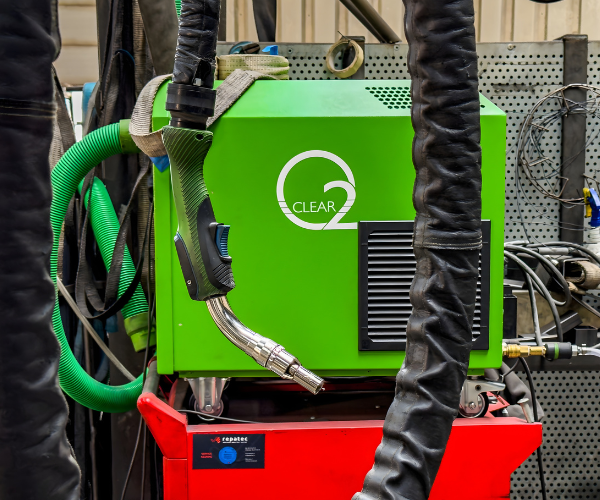

Paired with the 8XE 200 MINI MIG Extractor and the ClearO₂ W-Series 100 or 200, the system captures up to 98% of welding fumes directly at the source. This ensures welders and surrounding workers breathe cleaner air, creating a safer, healthier, and more productive work environment.

Specifications:

Reduces Welding Fume Up To 98%
Unique contact tip for manual fitting and durability.
Special design contact tip for a longer lifetime.
Ergonomic ball socket 30° angle and 360° rotatable.
Two unique nozzle designs 12mm and 14mm for optimal performance and durability

Product Image Slider

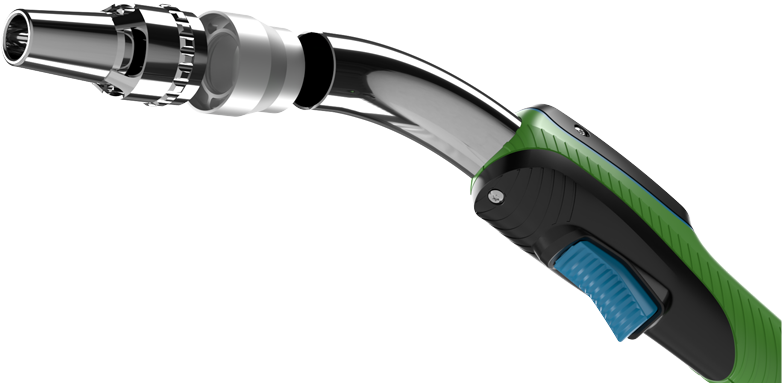

THE ROBUST CONNECTION BETWEEN SWAN NECK & METAL NECK

The new nozzle holder provides a robust connection between swan neck and metal neck. It is designed to take the biggest blows in any industrial environment, ensuring optimal performance for MIG welding fume extraction. This durable design works seamlessly with a welding fume extraction system, providing enhanced safety and efficiency during the welding process.

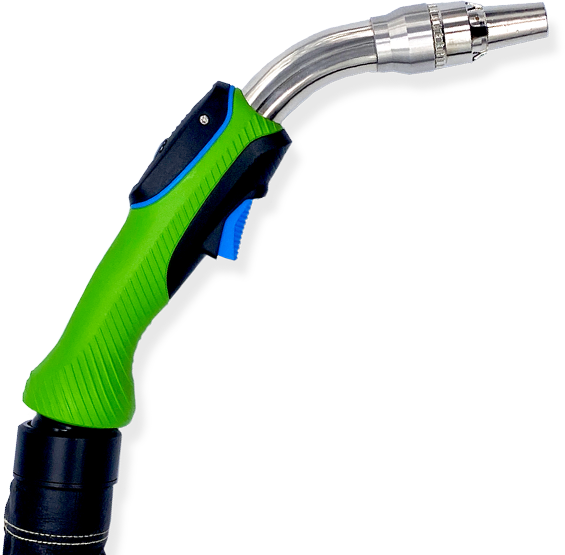

ERGONOMIC BALL SOCKET:
30° ANGLE AND 360° ROTATABLE

The 8XE ball joint has a 30° vertical angular movement combined with a 360° swivel and a full stop. Providing excellent maneuverability and leaving cables and hoses untwisted, and thereby leakage and breakage free, this combination is ideal for MIG welding fume extraction. The ergonomic design works seamlessly with a welding fume extraction system, offering superior flexibility and durability. It provides excellent maneuverability, maximizing comfort, and minimizing fatigue, especially in MIG welding fume extraction applications.

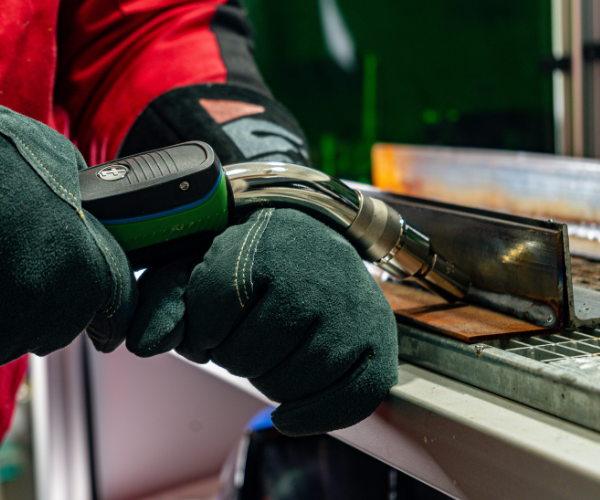

UNIQUE NOZZLE DESIGN FOR OPTIMAL PERFORMANCE AND DURABILITY

The nozzle design is unique to provide the best results for MIG welding fume extraction. Openings, wall thickness, and grip ribs are thoroughly developed for optimal operation and best performance, ensuring efficient operation within a welding fume extraction system. This design maximizes the effectiveness of MIG welding fume extraction, providing reliable performance in demanding environments.

8XE FUME EXTRACTOR LINE

Europe

North America

Europe

Technical Specification Replacement Part TECHNICAL DOCUMENT

8XE MIG MINI 200

AIR COOLED
CO2: 230 AMP
MIXED GASES: 200 AMP
DUTY CYCLE: 100%
WEIGHT*: 1.09KG

8XE MIG MINI 250

AIR COOLED
CO2: 280 AMP
MIXED GASES: 250 AMP
DUTY CYCLE: 100%
WEIGHT*: 1.34KG

8XE MIG MINI 320

WATER COOLED
CO2: 360 AMP
MIXED GASES: 320 AMP
DUTY CYCLE: 100%
WEIGHT*: 1.47KG

8XE MIG REGULAR 300

AIR COOLED
CO2: 320 AMP
MIXED GASES: 300 AMP
DUTY CYCLE: 100%
WEIGHT*: 1.48KG

8XE MIG REGULAR 400

AIR COOLED
CO2: 420 AMP
MIXED GASES: 400 AMP
DUTY CYCLE: 100%
WEIGHT*: 1.59KG

8XE MIG REGULAR 500

AIR COOLED
CO2: 550 AMP
MIXED GASES: 500 AMP
DUTY CYCLE: 100%
WEIGHT*: 1.68KG

8XE MIG MINI 200

8XE MIG MINI 250

8XE MIG MINI 320

8XE MIG REGULAR 300

8XE MIG REGULAR 400

8XE MIG REGULAR 500

COMPLETE TORCHES

CONSUMABLES

SPARE PARTS

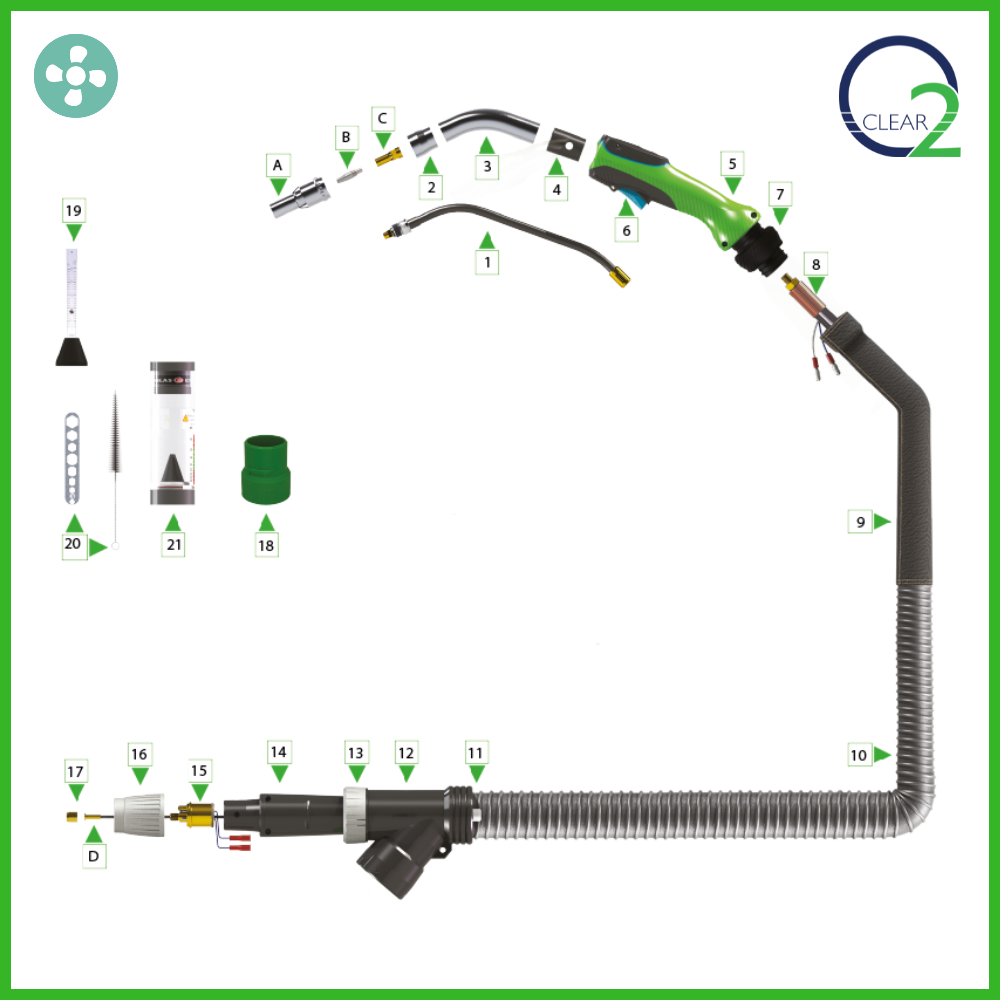

Part No.	Description	Pack Qty
8XE1001301000	8XE MINI 200 Extractor 3mtr gas cooled – 45° (standard)	1
8XE1001401000	8XE MINI 200 Extractor 4mtr gas cooled – 45° (standard)	1
8XE1001501000	8XE MINI 200 Extractor 5mtr gas cooled – 45° (standard)	1
8XE1101301000	8XE MINI 200 Extractor 3mtr gas cooled – 30°	1
8XE1101401000	8XE MINI 200 Extractor 4mtr gas cooled – 30°	1
8XE1101501000	8XE MINI 200 Extractor 5mtr gas cooled – 30°	1

Item	Part No.	Description	Pack Qty
A	3937000	Nozzle conical 12mm	5
	3937001	Nozzle conical 14mm special	5
	3937002	Nozzle conical 14mm	5
	3937003	Nozzle conical 14mm special 30mm extended	2
	3937004	Nozzle conical 14mm special 10mm extended	2
B	399080	Contact tip 8XC/8XE – 0,8	25
	399010	Contact tip 8XC/8XE – 1,0	25
	399012	Contact tip 8XC/8XE – 1,2	25
	3990102	Contact tip 8XC/8XE – 1,0 Alu	25
	3990122	Contact tip 8XC/8XE – 1,2 Alu	25
	3990101	Contact tip 8XC/8XE – 1,0 CuCrZr	25
	3990121	Contact tip 8XC/8XE – 1,2 CuCrZr	25
C	39327110	Tip adapter	10
	39327125	Tip adapter 10mm extended	5
	39327140	Tip adapter 30mm extended	5
D	301535	Plastic coated liner blue (1,5/4,5) 3mtr – for 0,8mm steel wire	1
	301545	Plastic coated liner blue (1,5/4,5) 4mtr – for 0,8mm steel wire	1
	301555	Plastic coated liner blue (1,5/4,5) 5mtr – for 0,8mm steel wire	1
	302535	Plastic coated liner red (2,0/4,5) 3mtr – for 1,0/1,2mm steel wire	1
	302545	Plastic coated liner red (2,0/4,5) 4mtr – for 1,0/1,2mm steel wire	1
	302555	Plastic coated liner red (2,0/4,5) 5mtr – for 1,0/1,2mm steel wire	1
	301538	Teflon liner blue (1.5/4.0) 3mtr – for 0,8mm aluminium wire	1
	301548	Teflon liner blue (1.5/4.0) 4mtr – for 0,8mm aluminium wire	1
	301558	Teflon liner blue (1.5/4.0) 5mtr – for 0,8mm aluminium wire	1
	302538	Teflon liner red (2.0/4.0) 3mtr – for 1,0-1,2mm aluminium wire	1
	302548	Teflon liner red (2.0/4.0) 4mtr – for 1,0-1,2mm aluminium wire	1
	302558	Teflon liner red (2.0/4.0) 5mtr – for 1,0-1,2mm aluminium wire	1

Item	Part No.	Description	Pack Qty
1	39301045	Swanneck 45°	1
	39301030	Swanneck 30°	1
	3950005	PEEK ring to fix nozzle holder (not shown)	5
2	3950000	Nozzle holder	1
3	3950045	Metal neck 45°	1
	3950046	Metal neck 30°	1
4	3950500	Adapter to fit MINI neck	1
5	391000	Handle green/black complete with trigger	1
6	3912009	Trigger with spring	1
	391250	Micro switch complete (not shown)	1
7	391809	Cable support set with ball-and-socket joint	1
8	259163X8	Cable assembly 3mtr	1
	259164X8	Cable assembly 4mtr	1
	259165X8	Cable assembly 5mtr	1
9	260019	Leather-sheathing with Velcro 2mtr	1
10	340303	Fume extraction hose 32-38mm 3mtr	1
	340304	Fume extraction hose 32-38mm 4mtr	1
	340305	Fume extraction hose 32-38mm 5mtr	1
11	398031	Hose connection	1
11b	3665502	Inside ring Extractor hose	1
12	398100	Housing (Y-shape) for fume extraction hose	1
13	398015	Connection ring	1
14	398010	Housing set for central connector	1
15	305298E23	Central connector Euro	1
16	BM9420	Adaptor nut	2
17	305315	Liner positioner nut	10
18	398110	Hose adapter	1
19	406050	Gasflow meter	1
20	371208	Tool set (brush and multitool)	1
21	371350	Airflow meter MINI Extractor	1
	320300	Ceramic dry film spray 400 ml (not shown)	12

COMPLETE TORCHES

CONSUMABLES

SPARE PARTS

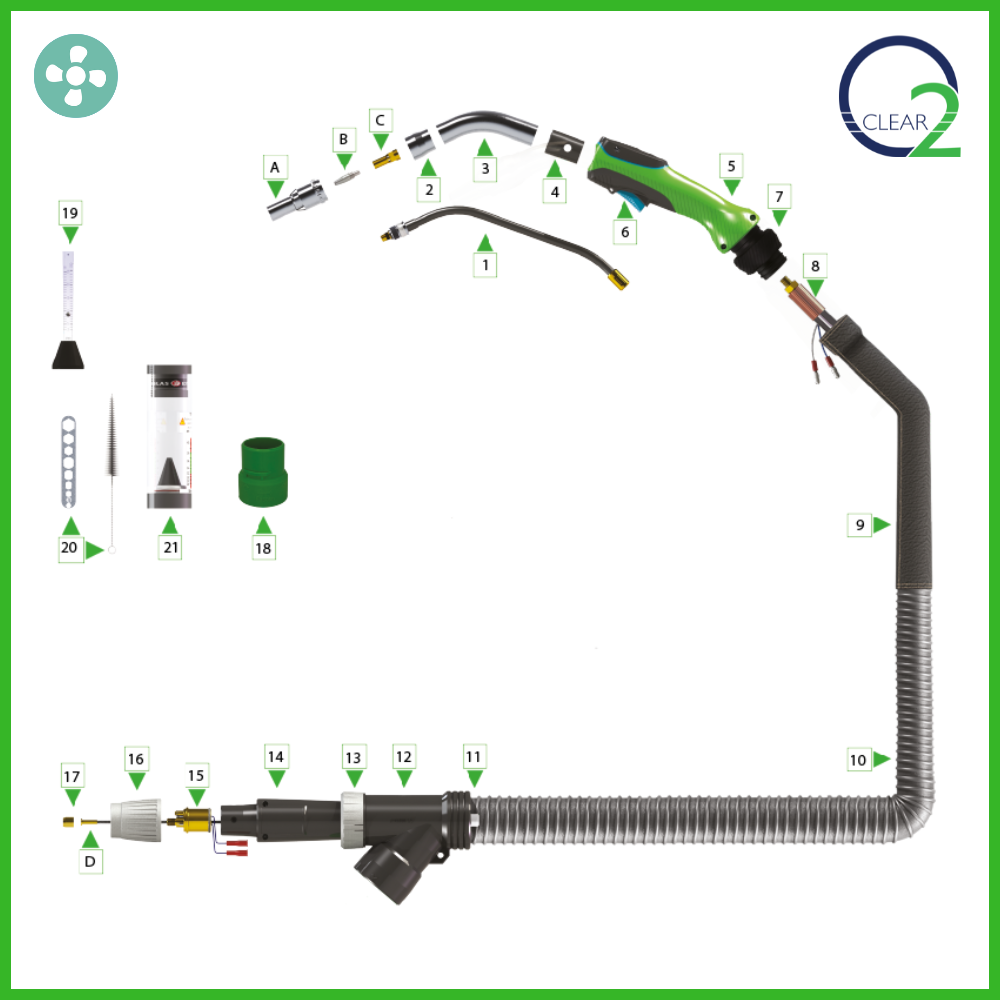

Part No.	Description	Pack Qty
8XE1000301000	8XE MINI 250 Extractor 3mtr gas cooled – 45° (standard)	1
8XE1000401000	8XE MINI 250 Extractor 4mtr gas cooled – 45° (standard)	1
8XE1000501000	8XE MINI 250 Extractor 5mtr gas cooled – 45° (standard)	1
8XE1100301000	8XE MINI 250 Extractor 3mtr gas cooled – 30°	1
8XE1100401000	8XE MINI 250 Extractor 4mtr gas cooled – 30°	1
8XE1100501000	8XE MINI 250 Extractor 5mtr gas cooled – 30°	1

Item	Part No.	Description	Pack Qty
A	3937000	Nozzle conical 12mm	5
	3937001	Nozzle conical 14mm special	5
	3937002	Nozzle conical 14mm	5
	3937003	Nozzle conical 14mm special 30mm extended	2
	3937004	Nozzle conical 14mm special 10mm extended	2
B	399080	Contact tip 8XC/8XE – 0,8	25
	399010	Contact tip 8XC/8XE – 1,0	25
	399012	Contact tip 8XC/8XE – 1,2	25
	3990102	Contact tip XC/6XE – 1,0 Alu	25
	3990122	Contact tip 8XC/8XE – 1,2 Alu	25
	3990101	Contact tip 8XC/8XE – 1,0 CuCrZr	25
	3990121	Contact tip 8XC/BXE – 1,2 CuCrZr	25
C	39327110	Tip adapter	10
	39327125	Tip adapter 10mm extended	5
	39327140	Tip adapter 30mm extended	5
D	301535	Plastic coated liner blue (1,5/4,5) 3mtr – for 0.8mm steel wire	1
	301545	Plastic coated liner blue (1,5/4,5) 4mtr – for 0.8mm steel wire	1
	302535	Plastic coated liner red (2,0/4,5) 3mtr – for 1.0/1.2mm steel wire	1
	302545	Plastic coated liner red (2,0/4,5) 4mtr – for 1.0/1.2mm steel wire	1
	302555	Plastic coated liner red (2,0/4,5) 5mtr – for 1.0/1.2mm steel wire	1
	301538	Teflon liner blue (1.5/4.0) 3mtr – for 0.8mm aluminium wire	1
	301548	Teflon liner blue (1.5/4.0) 4mtr – for 0.8mm aluminium wire	1
	301558	Teflon liner blue (1.5/4.0) 5mtr – for 0.8mm aluminium wire	1
	302538	Teflon liner red (2.0/4.0) 3mtr – for 1.0-1.2mm aluminium wire	1
	302548	Teflon liner red (2.0/4.0) 4mtr – for 1.0-1.2mm aluminium wire	1
	302558	Teflon liner red (2.0/4.0) 5mtr – for 1.0-1.2mm aluminium wire	1

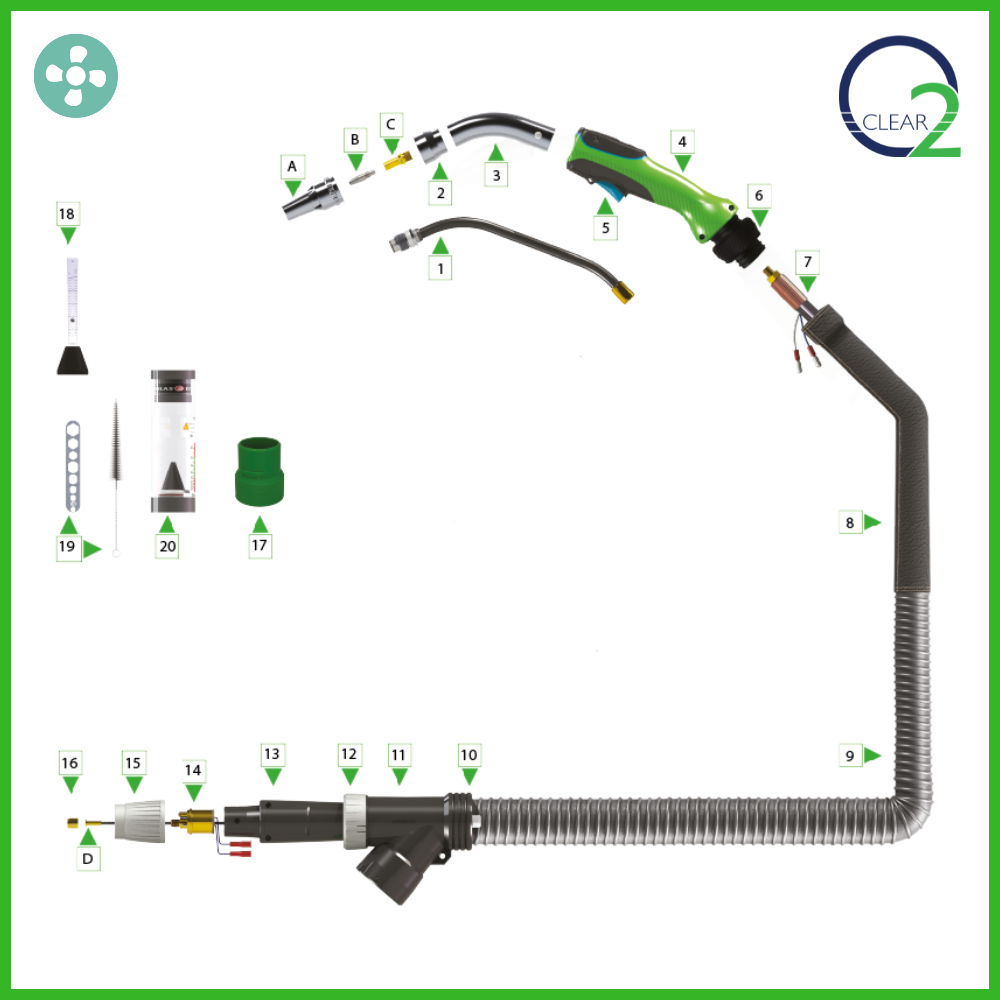

Item	Part No.	Description	Pack Qty
1	39301045	Swanneck 45°	1
	39301030	Swanneck 30°	1
	3950005	PEEK ring to fix nozzle holder (not shown)	5
2	3950000	Nozzle holder	1
3	3950045	Metal neck 45°	1
	3950046	Metal neck 30°	1
4	3950500	Adapter to fit MINI neck	1
5	391000	Handle green/black complete with trigger	1
6	3912009	Trigger with spring	1
	391250	Micro switch complete (not shown)	1
7	391809	Cable support set with ball-and-socket joint	1
8	259163X8	Cable assembly 3mtr	1
	259164X8	Cable assembly 4mtr	1
	259165X8	Cable assembly 5mtr	1
9	260019	Leather-sheathing with Velcro 2mtr	1
10	340303	Fume extraction hose 32-38mm 3mtr	1
	340304	Fume extraction hose 32-38mm 4mtr	1
	340305	Fume extraction hose 32-38mm 5mtr	1
11	398031	Hose connection	1
11b	3665502	Inside ring Extractor hose	1
12	398100	Housing (Y-shape) for fume extraction hose	1
13	398015	Connection ring	1
14	398010	Housing set for central connector	1
15	305298E23	Central connector Euro	1
16	8M9420	Adaptor nut	2
17	305315	Liner positioner nut	10
18	398110	Hose adapter	1
19	406050	Gasflow meter	1
20	371208	Tool set (brush and multitool)	1
21	371350	Airflow meter MINI Extractor	1
	320300	Ceramic dry film spray 400 ml (not shown)	12

COMPLETE TORCHES

CONSUMABLES

SPARE PARTS

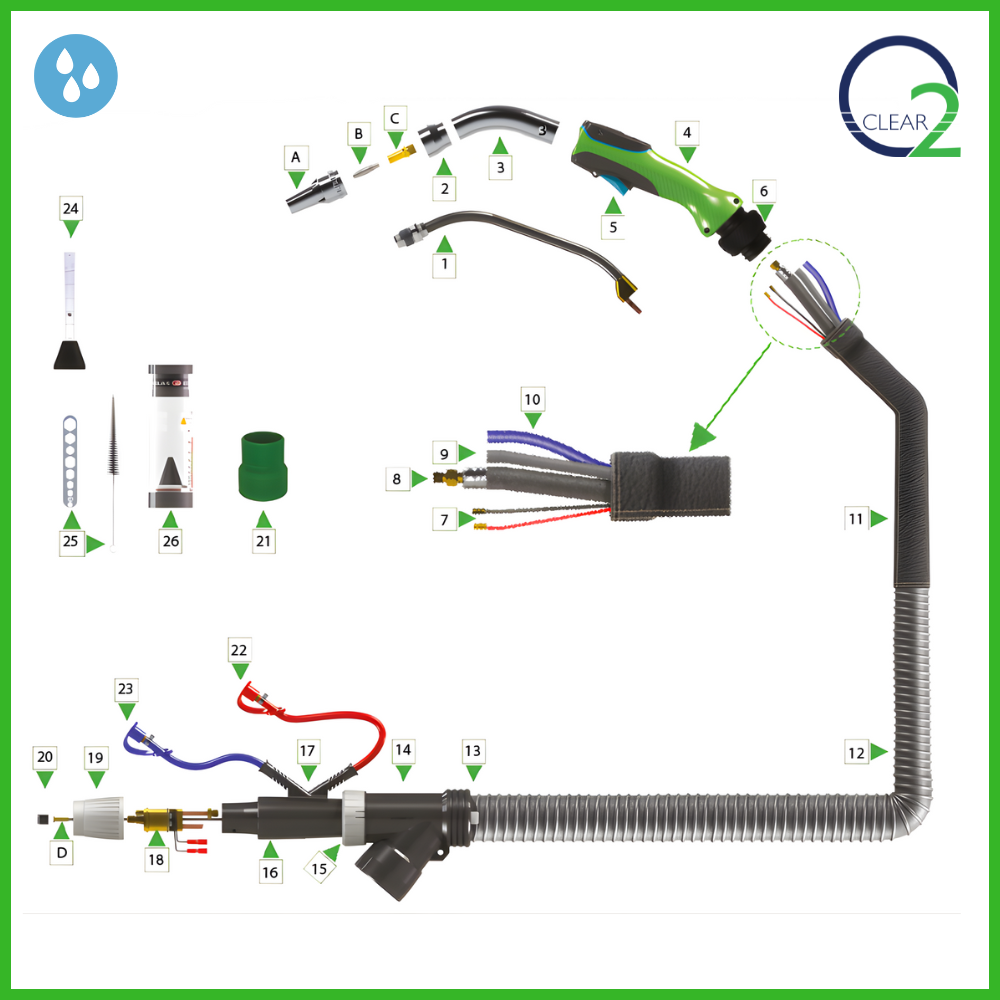

Part No.	Description	Pack Qty
8XE2060301000	8XE MINI Extractor 320 3mtr water cooled – 45° (standard)	1
8XE2060401000	8XE MINI Extractor 320 4mtr water cooled – 45° (standard)	1
8XE2060501000	8XE MINI Extractor 320 5mtr water cooled – 45° (standard)	1

Item	Part No.	Description	Pack Qty
A	3937000	Nozzle conical 12mm	5
	3937001	Nozzle conical 14mm special	5
	3937002	Nozzle conical 14mm	5
	3937003	Nozzle conical 14mm special 30mm extended	2
	3937004	Nozzle conical 14mm special 10mm extended	2
B	399080	Contact tip 8XC/8XE – 0,8	25
	399010	Contact tip 8XC/8XE – 1,0	25
	399012	Contact tip 8XC/8XE – 1,2	25
	3990102	Contact tip 8XC/8XE – 1,0 Alu	25
	3990122	Contact tip 8XC/8XE – 1,2 Alu	25
	3990101	Contact tip 8XC/8XE – 1,0 CuCrZr	25
	3990121	Contact tip 8XC/8XE – 1,2 CuCrZr	25
C	39327110	Tip adapter	10
	39327125	Tip adapter 10mm extended	5
	39327140	Tip adapter 30mm extended	5
D	301535	Plastic coated liner blue (1,5/4,5) 3mtr – for 0.8mm steel wire	1
	301545	Plastic coated liner blue (1,5/4,5) 4mtr – for 0.8mm steel wire	1
	301555	Plastic coated liner blue (1,5/4,5) 5mtr – for 0.8mm steel wire	1
	302535	Plastic coated liner red (2,0/4,5) 3mtr – for 1.0/1.2mm steel wire	1
	302545	Plastic coated liner red (2,0/4,5) 4mtr – for 1.0/1.2mm steel wire	1
	302555	Plastic coated liner red (2,0/4,5) 5mtr – for 1.0/1.2mm steel wire	1
	301538	Teflon liner blue (1.5/4.0) 3mtr – for 0.8mm aluminium wire	1
	301548	Teflon liner blue (1.5/4.0) 4mtr – for 0.8mm aluminium wire	1
	301558	Teflon liner blue (1.5/4.0) 5mtr – for 0.8mm aluminium wire	1
	302538	Teflon liner red (2.0/4.0) 3mtr – for 1.0-1.2mm aluminium wire	1
	302548	Teflon liner red (2.0/4.0) 4mtr – for 1.0-1.2mm aluminium wire	1
	302558	Teflon liner red (2.0/4.0) 5mtr – for 1.0-1.2mm aluminium wire	1

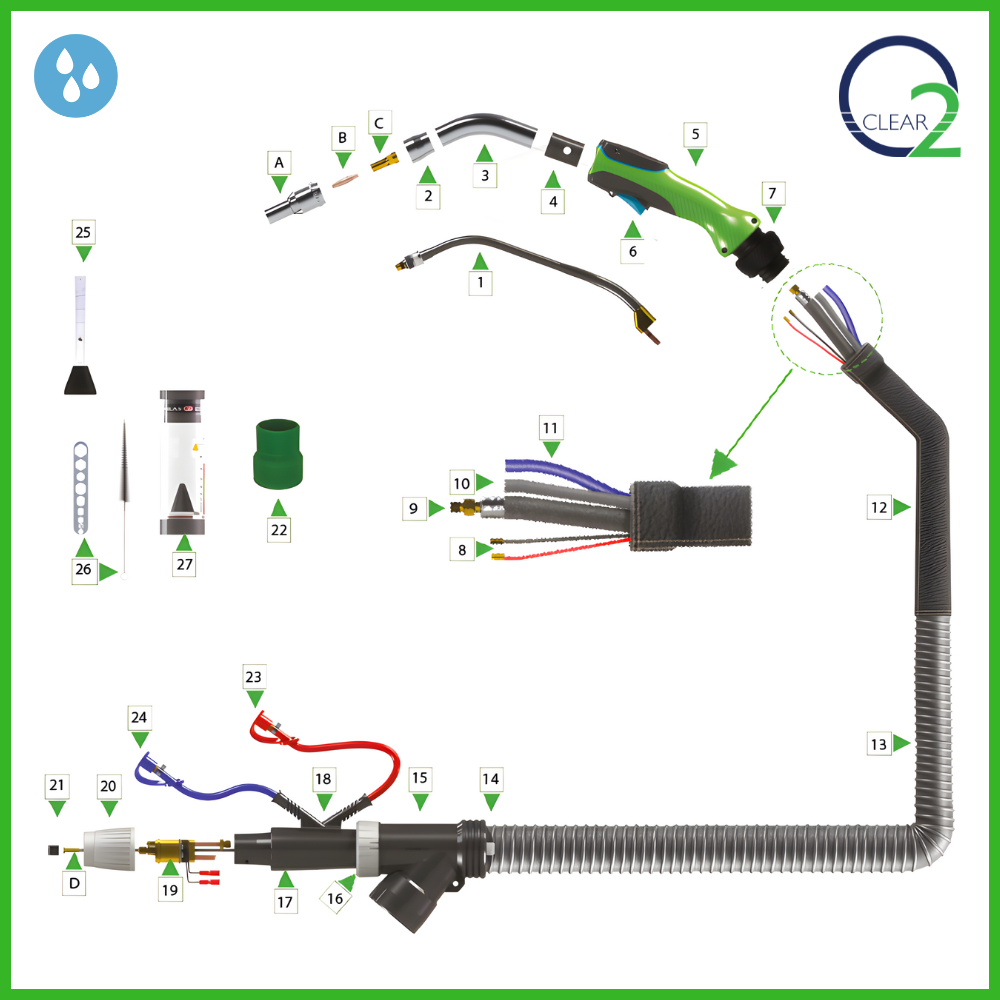

Item	Part No.	Description	Pack Qty
1	39304045	Swanneck 45°	1
	3950005	PEEK ring to fix nozzle holder (not shown)	5
2	3950000	Nozzle holder	1
3	3950045	Metal neck 45°	1
4	3950500	Adapter to fit MINI neck	1
5	391000	Handle green/black complete with trigger	1
6	3912009	Trigger with spring	1
	391250	Micro switch complete (not shown)	1
7	391810	Cable support set with ball-and-socket joint	1
8	306505	Switch cable 1×0,75mm² per mtr	100
9	258513X8	Power/water cable 3mtr	1
	258514X8	Power/water cable 4mtr	1
	258515X8	Power/water cable 5mtr	1
10	2585313XE	Outer liner 3mtr	1
	2585314XE	Outer liner 4mtr	1
	2585315XE	Outer liner 5mtr	1
11	258535	Water inlet hose 5x8mm blue per mtr	100
	258566	Water outlet hose 5x8mm red per mtr	100
12	260018	Leather-sheathing with Velcro 2mtr	1
13	3402032	Fume extraction hose 36-44mm 3mtr	1
	3402042	Fume extraction hose 36-44mm 4mtr	1
	3402052	Fume extraction hose 36-44mm 5mtr	1
14	398030	Hose connection	1
14b	3665501	Inside ring Extractor hose	1
15	398100	Housing (Y-shape) for fume extraction hose	1
16	398015	Connection ring	1
17	398010	Housing set for central connector	1
18	350881	Water hose guide	1
19	305304E23	Central connector Euro	1
20	8M9420	Adaptor nut	2
21	305315	Liner positioner nut	10
22	398110	Hose adapter	1
23	258701	Waterstop red	10
24	258702	Waterstop blue	10
25	406050	Gasflow meter	1
26	371208	Tool set (brush and multitool)	1
27	371350	Airflow meter Extractor	1
	320300	Ceramic dry film spray 400 ml (not shown)	12

COMPLETE TORCHES

CONSUMABLES

SPARE PARTS

Part No.	Description	Pack Qty
8XE3020301000	8XE Extractor 300 3mtr gas cooled – 45° (standard)	1
8XE3020401000	8XE Extractor 300 4mtr gas cooled – 45° (standard)	1
8XE3020501000	8XE Extractor 300 5mtr gas cooled – 45° (standard)	1
8XE3120301000	8XE Extractor 300 3mtr gas cooled – 30°	1
8XE3120401000	8XE Extractor 300 4mtr gas cooled – 30°	1
8XE3120501000	8XE Extractor 300 5mtr gas cooled – 30°	1

Item	Part No.	Description	Pack Qty
A	3937041	Nozzle 8XC/8XE Extractor 14mm special	5
	3937042	Nozzle 8XC/8XE Extractor 14mm special 10mm extended	2
	3937043	Nozzle 8XC/8XE Extractor 14mm special 30mm extended	2
	3937045	Nozzle 8XC/8XE Extractor 17mm special	5
B	399010	Contact tip 8XC/8XE – 1,0	25
	399012	Contact tip 8XC/8XE – 1,2	25
	399016	Contact tip 8XC/8XE – 1,6	25
	3990102	Contact tip 8XC/8XE – 1,0 Alu	25
	3990122	Contact tip 8XC/8XE – 1,2 Alu	25
	3990101	Contact tip 8XC/8XE – 1,0 CuCrZr	25
	3990161	Contact tip 8XC/8XE – 1,6 CuCrZr	25
C	39327210	Tip adapter	10
	39327225	Tip adapter 10mm extended	5
	39327240	Tip adapter 30mm extended	5
D	302535	Plastic coated liner red (2,0/4,5) 3mtr – for 1.0/1.2mm wire	1
	302545	Plastic coated liner red (2,0/4,5) 4mtr – for 1.0/1.2mm wire	1
	302555	Plastic coated liner red (2,0/4,5) 5mtr – for 1.0/1.2mm wire	1
	303635	Plastic coated liner yellow (2,5/4,5) 3mtr – for 1.6mm wire	1
	303645	Plastic coated liner yellow (2,5/4,5) 4mtr – for 1.6mm wire	1
	303655	Plastic coated liner yellow (2,5/4,5) 5mtr – for 1.6mm wire	1
	302538	Teflon red (2,0/4,0) 3mtr – for 1.0/1.2mm aluminium wire	1
	302548	Teflon red (2,0/4,0) 4mtr – for 1.0/1.2mm aluminium wire	1
	302558	Teflon red (2,0/4,0) 5mtr – for 1.0/1.2mm aluminium wire	1
	303638	Teflon yellow (2.7/4.7) 3mtr – for 1.6mm aluminium wire	1
	303648	Teflon yellow (2.7/4.7) 4mtr – for 1.6mm aluminium wire	1
	303658	Teflon yellow (2.7/4.7) 5mtr – for 1.6mm aluminium wire	1
	304830	Graphite liner black (2,3/4,7) 3mtr combiliner – for 1.0/1.2mm wire	1
	304832	Graphite liner black (2,3/4,7) 4mtr combiliner – for 1.0/1.2mm wire	1
	304834	Graphite liner black (2,3/4,7) 5mtr combiliner – for 1.0/1.2mm wire	1
	304861	Graphite liner black (2,3/4,7) 3mtr combiliner – for 1.6mm wire	1
	304837	Graphite liner black (2,3/4,7) 5mtr combiliner – for 1.6mm wire	1

Item	Part No.	Description	Pack Qty
1	39302045	Swanneck 45°	1
	39302030	Swanneck 30°	1
	3950205	PEEK ring to fix nozzle holder (not shown)	5
2	3950200	Nozzle holder	1
3	3950245	Metal neck 45°	1
	3950246	Metal neck 30°	1
4	391000	Handle green/black complete with trigger	1
5	3912009	Trigger with spring	1
	391250	Micro switch complete (not shown)	1
6	391810	Cable support set with ball-and-socket joint	1
7	259363X8	Cable assembly 3mtr	1
	259364X8	Cable assembly 4mtr	1
	259365X8	Cable assembly 5mtr	1
8	260018	Leather-sheathing with Velcro 2mtr	1
9	3402032	Fume extraction hose 36-44mm 3mtr	1
	3402042	Fume extraction hose 36-44mm 4mtr	1
	3402052	Fume extraction hose 36-44mm 5mtr	1
10	398030	Hose connection	1
10b	3665501	Inside ring Extractor hose	1
11	398100	Housing (Y-shape) for fume extraction hose	1
12	398015	Connection ring	1
13	398010	Housing set for central connector	1
14	305298E23	Central connector Euro	1
15	8M9420	Adaptor nut	2
16	305315	Liner positioner nut	10
17	398110	Hose adapter	1
18	406050	Gasflow meter	1
19	371208	Tool set (brush and multitool)	1
20	371300	Airflow meter Extractor	1
	320300	Ceramic dry film spray 400 ml (not shown)	12

COMPLETE TORCHES

CONSUMABLES

SPARE PARTS

Part No.	Description	Pack Qty
8XE4028301000	8XE Extractor 400 3mtr gas cooled – 45° (standard)	1
8XE4028401000	8XE Extractor 400 4mtr gas cooled – 45° (standard)	1
8XE4028501000	8XE Extractor 400 5mtr gas cooled – 45° (standard)	1

Item	Part No.	Description	Pack Qty
A	3937041	Nozzle 8XC/8XE Extractor 14mm special	5
	3937045	Nozzle 8XC/8XE Extractor 17mm special	5
B	399010	Contact tip 8XC/8XE – 1,0	25
	399012	Contact tip 8XC/8XE – 1,2	25
	399016	Contact tip 8XC/8XE – 1,6	25
	3990102	Contact tip 8XC/8XE – 1,0 Alu	25
	3990122	Contact tip 8XC/8XE – 1,2 Alu	25
	3990101	Contact tip 8XC/8XE – 1,0 CuCrZr	25
	3990121	Contact tip 8XC/8XE – 1,2 CuCrZr	25
	3990161	Contact tip 8XC/8XE – 1,6 CuCrZr	25
C	39327310	Tip adapter	10
D	303793	Plastic coated liner black INOX (2.0/5.4) 3mtr – for 1.0/1.2mm wire	1
	303794	Plastic coated liner black INOX (2.0/5.4) 4mtr – for 1.0/1.2mm wire	1
	303795	Plastic coated liner black INOX (2.0/5.4) 5mtr – for 1.0/1.2mm wire	1
	303763	Plastic coated liner grey INOX (2.4/5.6) 3mtr – for 1.6mm wire	1
	303764	Plastic coated liner grey INOX (2.4/5.6) 4mtr – for 1.6mm wire	1
	303765	Plastic coated liner grey INOX (2.4/5.6) 5mtr – for 1.6mm wire	1
	304830	Graphite liner black (2.0/4.0) 3mtr combiliner – for 1.0/1.2mm wire	1
	304831	Graphite liner black (2.0/4.0) 4mtr combiliner – for 1.0/1.2mm wire	1
	304832	Graphite liner black (2.0/4.0) 5mtr combiliner – for 1.0/1.2mm wire	1
	3048351	Graphite liner black (2.3/4.7) 3mtr combiliner – for 1.6mm wire	1
	3048361	Graphite liner black (2.3/4.7) 4mtr combiliner – for 1.6mm wire	1
	3048371	Graphite liner black (2.3/4.7) 5mtr combiliner – for 1.6mm wire	1

Item	Part No.	Description	Pack Qty
1	39302145	Swanneck 45°	1
	3950205	PEEK ring to fix nozzle holder (not shown)	5
2	3950200	Nozzle holder	1
3	3950245	Metal neck 45°	1
4	391000	Handle green/black complete with trigger	1
5	3912009	Trigger with spring	1
	391250	Micro switch complete (not shown)	1
6	391810	Cable support set with ball-and-socket joint	1
7	259463X8	Cable assembly 3mtr	1
	259464X8	Cable assembly 4mtr	1
	259465X8	Cable assembly 5mtr	1
8	260018	Leather-sheathing with Velcro 2mtr	1
9	3402032	Fume extraction hose 36-44mm 3mtr	1
	3402042	Fume extraction hose 36-44mm 4mtr	1
	3402052	Fume extraction hose 36-44mm 5mtr	1
10	398030	Hose connection	1
10b	3665501	Inside ring Extractor hose	1
11	398100	Housing (Y-shape) for fume extraction hose	1
12	398015	Connection ring	1
13	398010	Housing set for central connector	1
14	3052988	Central connector Euro	1
15	8M9420	Adaptor nut	2
16	305315	Liner positioner nut	10
17	398110	Hose adapter	1
18	406050	Gasflow meter	1
19	371208	Tool set (brush and multitool)	1
20	371300	Airflow meter Extractor	1
	320300	Ceramic dry film spray 400 ml (not shown)	12

COMPLETE TORCHES

CONSUMABLES

SPARE PARTS

Part No.	Description	Pack Qty
8XE5060301000	8XE Extractor 500 3mtr gas cooled – 45° (standard)	1
8XE5060401000	8XE Extractor 500 4mtr gas cooled – 45° (standard)	1
8XE5060501000	8XE Extractor 500 5mtr gas cooled – 45° (standard)	1
8XE5160301000	8XE Extractor 500 3mtr gas cooled – 30°	1
8XE5160401000	8XE Extractor 500 4mtr gas cooled – 30°	1
8XE5160501000	8XE Extractor 500 5mtr gas cooled – 30°	1

Item	Part No.	Description	Pack Qty
A	3937041	Nozzle 8XC / 8XE Extractor 14mm special	5
	3937042	Nozzle 8XC / 8XE Extractor 14mm special 10mm extended	2
	3937043	Nozzle 8XC / 8XE Extractor 14mm special 30mm extended	2
	3937045	Nozzle 8XC / 8XE Extractor 17mm special	5
B	399010	Contact tip 8XC / 8XE – 1,0	25
	399012	Contact tip 8XC / 8XE – 1,2	25
	399016	Contact tip 8XC / 8XE – 1,6	25
	3990102	Contact tip 8XC / 8XE 1,0 Alu	25
	3990122	Contact tip 8XC / 8XE – 1,2 Alu	25
	3990101	Contact tip 8XC / 8XE – 1,0 CuCrZr	25
	3990121	Contact tip 8XC / 8XE – 1,2 CuCrZr	25
	3990161	Contact tip 8XC / 8XE 1,6 CuCrZr	25
C	39327210	Tip adapter	10
	39327225	Tip adapter 10mm extended	5
	39327240	Tip adapter 30mm extended	5
D	302535	Plastic coated liner red (2,0/4,5) 3mtr -for 1,0/1,2mm wire	1
	302545	Plastic coated liner red (2,0/4,5) 4mtr -for 1,0/1,2mm wire	1
	302555	Plastic coated liner red (2,0/4,5) 5mtr -for 1,0/1,2mm wire	1
	303635	Plastic coated liner yellow (2,5/4,5) 3mtr -for 1,6mm wire	1
	303645	Plastic coated liner yellow (2,5/4,5) 4mtr – for 1,6mm wire	1
	303655	Plastic coated liner yellow (2,5/4,5)) 5mtr -for 1,6mm wire	1
	302538	Teflon red (2.0/4.0) 3mtr – for 1,0-1,2mm aluminium wire	1
	302548	Teflon red (2.0/4.0) 4mtr – for 1,0-1,2mm aluminium wire	1
	302558	Teflon red (2.0/4.0) 5mtr – for 1,0-1,2mm aluminium wire	1
	303638	Teflon yellow (2.7/4.7) 3mtr – for 1,6mm aluminium wire	1
	303648	Teflon yellow (2.7/4.7) 4mtr – for 1,6mm aluminium wire	1
	303658	Teflon yellow (2.7/4.7) 5mtr – for 1,6mm aluminium wire	1
	304830	Graphite liner black (2,0/4,0) 3mtr combiliner- for 1,0/1,2mm wire	1
	304831	Graphite liner black (2,0/4,0) 4mtr combiliner- for 1,0/1,2mm wire	1
	304832	Graphite liner black (2,0/4,0) 5mtr combiliner- for 1,0/1,2mm wire	1
	3048351	Graphite liner black (2,3/4,7) 3mtr combiliner- for 1,6mm wire	1
	3048361	Graphite liner black (2,3/4,7) 4mtr combiliner- for 1,6mm wire	1
	3048371	Graphite liner black (2,3/4,7) 5mtr combiliner- for 1,6mm wire	1

Item	Part No.	Description	Pack Qty
1	39303045	Swanneck 45°	1
	39303030	Swanneck 30°	1
	3950205	PEEK ring to fix nozzle holder (not shown)	5
2	3950200	Nozzle holder	1
3	3950245	Metal neck 45°	1
	3950246	Metal neck 30°	1
4	391000	Handle green/black complete with trigger	1
5	3912009	Trigger with spring	1
	391250	Micro switch complete (not shown)	1
6	391810	Cable support set with ball-and-socket joint	1
7	306505	Switch cable 1×0,75mm² per mtr	100
8	258513X8	Power/water cable 3mtr	1
	258514X8	Power/water cable 4mtr	1
	258515X8	Power/water cable 5mtr	1
9	2585313XE	Outer liner 3mtr	1
	2585314XE	Outer liner 4mtr	1
	2585315XE	Outer liner 5mtr	1
10	258535	Water inlet hose 5x8mm blue per mtr	100
	258566	Water outlet hose 5x8mm red per mtr	100
11	260018	Leather-sheathing with Velcro 2mtr	1
12	3402032	Fume extraction hose 36-44mm 3mtr	1
	3402042	Fume extraction hose 36-44mm 4mtr	1
	3402052	Fume extraction hose 36-44mm 5mtr	1
13	398030	Hose connection	1
13b	3665501	Inside ring Extractor hose	1
14	398100	Housing (Y-shape) for fume extraction hose	1
15	398015	Connection ring	1
16	398010	Housing set for central connector	1
17	350881	Water hose guide	1
18	305304E23	Central connector Euro	1
19	8M9420	Adaptor nut	2
20	305315	Liner positioner nut	10
21	398110	Hose adapter	1
22	258701	Waterstop red	10
23	258702	Waterstop bluer	10
24	406050	Gasflow meter	1
25	371208	Tool set (brush and multitool)	1
26	371300	Airflow meter Extractor	1
	320300	Ceramic dry film spray 400 ml (not shown)	12

Part No.	Description	Pack Qty
8XO1001305000	8XE MINI Extractor USA 200AMP 10ft (3mtr) air cooled – 45° (standard)	1
8XO1001405000	8XE MINI Extractor USA 200AMP 13ft (4mtr) air cooled – 45° (standard)	1
8XO1001505000	8XE MINI Extractor USA 200AMP 16ft (5mtr) air cooled – 45° (standard)	1
8XO1001605000	8XE MINI Extractor USA 200AMP 20ft (6mtr) air cooled – 45° (standard)	1
8XO1501305000	8XE MINI Extractor USA 200AMP 10ft (3mtr) air cooled – straight	1
8XO1501405000	8XE MINI Extractor USA 200AMP 13ft (4mtr) air cooled – straight	1
8XO1501505000	8XE MINI Extractor USA 200AMP 16ft (5mtr) air cooled – straight	1
8XO1501605000	8XE MINI Extractor USA 200AMP 20ft (6mtr) air cooled – straight	1

Description

Pack Qty

8XO1001305000

8XE MINI Extractor USA 200AMP 10ft (3mtr) air cooled – 45° (standard)

8XO1001405000

8XE MINI Extractor USA 200AMP 13ft (4mtr) air cooled – 45° (standard)

8XO1001505000

8XE MINI Extractor USA 200AMP 16ft (5mtr) air cooled – 45° (standard)

8XO1001605000

8XE MINI Extractor USA 200AMP 20ft (6mtr) air cooled – 45° (standard)

8XO1501305000

8XE MINI Extractor USA 200AMP 10ft (3mtr) air cooled – straight

8XO1501405000

8XE MINI Extractor USA 200AMP 13ft (4mtr) air cooled – straight

8XO1501505000

8XE MINI Extractor USA 200AMP 16ft (5mtr) air cooled – straight

8XO1501605000

8XE MINI Extractor USA 200AMP 20ft (6mtr) air cooled – straight

Item

Part No.

Description

Pack Qty

3937000

Nozzle conical 12mm

3937001

Nozzle conical 14mm special

3937002

Nozzle conical 14mm

399008

Contact Tip 8XC/8XE – .030 (0.8)

399010

Contact Tip 8XC/8XE – .040 (1.0)

399012

Contact Tip 8XC/8XE – .045 (1.2)

3990102

Contact Tip 8XC/8XE – .040 (1.0) Alu

3990122

Contact Tip 8XC/8XE – .045 (1.2) Alu

3990091

Contact Tip 8XC/8XE – .035 (0.9) CuCrZr

3990101

Contact Tip 8XC/8XE – .040 (1.0) CuCrZr

3990121

Contact Tip 8XC/8XE – .045 (1.2) CuCrZr

39327110

Tip adapter

301535-USA

Plastic coated liner blue 10ft (3mtr) – for .030 wire

301545-USA

Plastic coated liner blue 13ft (4mtr) – for .030 wire

301555-USA

Plastic coated liner blue 16ft (5mtr) – for .030 wire

301565-USA

Plastic coated liner blue 20ft (6mtr) – for .030 wire

302535-USA

Plastic coated liner red 10ft (3mtr) – for .035 to .045 wire

302545-USA

Plastic coated liner red 13ft (4mtr) – for .035 to .045 wire

302555-USA

Plastic coated liner red 16ft (5mtr) – for .035 to .045 wire

302565-USA

Plastic coated liner red 20ft (6mtr) – for .035 to .045 wire

Item

Part No.

Description

Pack Qty

39301045

Swanneck 45°

39301000

Swan neck straight

3950005

PEEK ring to fix nozzle holder (not shown)

3950000

Nozzle holder

3950045

Metal neck 45°

3950050

Metal neck straight

3950050

Adapter to fit MINI neck

391000

Handle green/black complete with trigger

3912009

Trigger with spring

391250

Micro switch complete (not shown)

381900

Cable support set with ball-and-socket joint

259163X8

Cable assembly 10ft (3mtr)

259164X8

Cable assembly 13ft (4mtr)

259165X8

Cable assembly 16ft (5mtr)

259166X8

Cable assembly 20ft (6mtr)

260019

Leather-sheathing with velcro 6ft (2mtr)

340303

Fume extraction hose 10ft (3mtr)

340304

Fume extraction hose 13ft (4mtr)

340305

Fume extraction hose 16ft (5mtr)

340306

Fume extraction hose 20ft (6mtr)

398031

Hose connection

398100

Housing (Y-shape) for fume extraction hose

398015

Connection ring

398100

Housing set for central connector

3059001

Central connector

398020

Adaptor nut

3059100

Tweco tail

3059205

Lincoln tail complete with gas hose

3059150

Miller tail

349104

Switch cable 45cm (Quick connect)

306545

Locking clip (Quick connect)

349130

Tweco swith cable end (Quick connect)

349120

Miller swith cable end (Quick connect)

349110

Lincoln swith cable end (Quick connect)

398110

Hose adapter

406050

Gasflow meter

371208

Tool set (brush and multitool)

371350

Airflow meter MINI Extractor

–

320300

Ceramic dry film spray 400 ml (not shown)

Part No.	Description	Pack Qty
8XO1000305000	8XE MINI Extractor USA 250AMP 10ft (3mtr) air cooled – 45° (standard)	1
8XO1000405000	8XE MINI Extractor USA 250AMP 13ft (4mtr) air cooled – 45° (standard)	1
8XO1000505000	8XE MINI Extractor USA 250AMP 16ft (5mtr) air cooled – 45° (standard)	1
8XO1000605000	8XE MINI Extractor USA 250AMP 20ft (6mtr) air cooled – 45° (standard)	1
8XO1500305000	8XE MINI Extractor USA 250AMP 10ft (3mtr) air cooled – straight	1
8XO1500405000	8XE MINI Extractor USA 250AMP 13ft (4mtr) air cooled – straight	1
8XO1500505000	8XE MINI Extractor USA 250AMP 16ft (5mtr) air cooled – straight	1
8XO1500605000	8XE MINI Extractor USA 250AMP 20ft (6mtr) air cooled – straight	1

Part No.

Description

Pack Qty

8XO1000305000

8XE MINI Extractor USA 250AMP 10ft (3mtr) air cooled – 45° (standard)

8XO1000405000

8XE MINI Extractor USA 250AMP 13ft (4mtr) air cooled – 45° (standard)

8XO1000505000

8XE MINI Extractor USA 250AMP 16ft (5mtr) air cooled – 45° (standard)

8XO1000605000

8XE MINI Extractor USA 250AMP 20ft (6mtr) air cooled – 45° (standard)

8XO1500305000

8XE MINI Extractor USA 250AMP 10ft (3mtr) air cooled – straight

8XO1500405000

8XE MINI Extractor USA 250AMP 13ft (4mtr) air cooled – straight

8XO1500505000

8XE MINI Extractor USA 250AMP 16ft (5mtr) air cooled – straight

8XO1500605000

8XE MINI Extractor USA 250AMP 20ft (6mtr) air cooled – straight

Item

Part No.

Description

Pack Qty

3937000

Nozzle conical 12mm

3937001

Nozzle conical 14mm special

3937002

Nozzle conical 14mm

399008

Contact Tip 8XC/8XE – .030 (0.8)

399010

Contact Tip 8XC/8XE – .040 (1.0)

399012

Contact Tip 8XC/8XE – .045 (1.2)

3990102

Contact Tip 8XC/8XE – .040 (1.0) Alu

3990122

Contact Tip 8XC/8XE – .045 (1.2) Alu

3990091

Contact Tip 8XC/8XE – .035 (0.9) CuCrZr

3990101

Contact Tip 8XC/8XE – .040 (1.0) CuCrZr

3990121

Contact Tip 8XC/8XE – .045 (1.2) CuCrZr

39327110

Tip adapter

301535-USA

Plastic coated liner blue 10ft (3mtr) – for .030 wire

301545-USA

Plastic coated liner blue 13ft (4mtr) – for .030 wire

301555-USA

Plastic coated liner blue 16ft (5mtr) – for .030 wire

301565-USA

Plastic coated liner blue 20ft (6mtr) – for .030 wire

302535-USA

Plastic coated liner red 10ft (3mtr) – for .035 to .045 wire

302545-USA

Plastic coated liner red 13ft (4mtr) – for .035 to .045 wire

302555-USA

Plastic coated liner red 16ft (5mtr) – for .035 to .045 wire

302565-USA

Plastic coated liner red 20ft (6mtr) – for .035 to .045 wire

Item

Part No.

Description

Pack Qty

39301045

Swanneck 45°

39301000

Swan neck straight

3950005

PEEK ring to fix nozzle holder (not shown)

3950000

Nozzle holder

3950045

Metal neck 45°

3950050

Metal neck straight

3950500

Adapter to fit MINI neck

391000

Handle green/black complete with trigger

3912009

Trigger with spring

391250

Micro switch complete (not shown)

381900

Cable support set with ball-and-socket joint

259163X8

Cable assembly 10ft (3mtr)

259164X8

Cable assembly 13ft (4mtr)

259165X8

Cable assembly 16ft (5mtr)

259166X8

Cable assembly 20ft (6mtr)

260019

Leather-sheathing with velcro 6ft (2mtr)

340303

Fume extraction hose 10ft (3mtr)

340304

Fume extraction hose 13ft (4mtr)

340305

Fume extraction hose 16ft (5mtr)

340306

Fume extraction hose 20ft (6mtr)

398031

Hose connection

398100

Housing (Y-shape) for fume extraction hose

398015

Connection ring

398010

Housing set for central connector

3059001

Central connector

398020

Adaptor nut

3059100

Tweco tail

3059205

Lincoln tail complete with gas hose

3059150

Miller tail

349200

Switch cable 45cm (Quick connect)

306545

Locking clip (Quick connect)

349130

Tweco swith cable end (Quick connect)

349120

Miller swith cable end (Quick connect)

349110

Lincoln swith cable end (Quick connect)

398110

Hose adapter

406050

Gasflow meter

371208

Tool set (brush and multitool)

371350

Airflow meter MINI Extractor

–

320300

Ceramic dry film spray 400 ml (not shown)

Part No.	Description	Pack Qty
8XO4028405000	8XE Extractor USA 400AMP 10ft (3mtr) air cooled – 45° (standard)	1
8XO4028405000	8XE Extractor USA 400AMP 13ft (4mtr) air cooled – 45° (standard)	1
8XO4028505000	8XE Extractor USA 400AMP 16ft (5mtr) air cooled – 45° (standard)	1
8XO4028605000	8XE Extractor USA 400AMP 20ft (6mtr) air cooled – 45° (standard)	1
8XO4528305000	8XE Extractor USA 400AMP 10ft (3mtr) air cooled – straight	1
8XO4528405000	8XE Extractor USA 400AMP 13ft (4mtr) air cooled – straight	1
8XO4528505000	8XE Extractor USA 400AMP 16ft (5mtr) air cooled – straight	1
8XO4528605000	8XE Extractor USA 400AMP 20ft (6mtr) air cooled – straight	1

Part No.

Description

Pack Qty

8XO4028405000

8XE Extractor USA 400AMP 10ft (3mtr) air cooled – 45° (standard)

8XO4028405000

8XE Extractor USA 400AMP 13ft (4mtr) air cooled – 45° (standard)

8XO4028505000

8XE Extractor USA 400AMP 16ft (5mtr) air cooled – 45° (standard)

8XO4028605000

8XE Extractor USA 400AMP 20ft (6mtr) air cooled – 45° (standard)

8XO4528305000

8XE Extractor USA 400AMP 10ft (3mtr) air cooled – straight

8XO4528405000

8XE Extractor USA 400AMP 13ft (4mtr) air cooled – straight

8XO4528505000

8XE Extractor USA 400AMP 16ft (5mtr) air cooled – straight

8XO4528605000

8XE Extractor USA 400AMP 20ft (6mtr) air cooled – straight

Item	Part No.	Description	Pack Qty
A	3937041	Nozzle conical .55 (14mm Special)	5
	3937045	Nozzle conical .67 (17mm Special)	5
B	399010	Contact Tip 8XC/8XE – 0.40 (1.0)	25
	399012	Contact Tip 8XC/8XE – 0.45 (1.2)	25
	399016	Contact Tip 8XC/8XE – 0.62 (1.6)	25
	3990102	Contact Tip 8XC/8XE – 0.40 (1.0) Alu	25
	3990122	Contact Tip 8XC/8XE – 0.45 (1.2) Alu	25
	3990091	Contact Tip 8XC/8XE – 0.35 (0.9) CuCrZr	25
	3990101	Contact Tip 8XC/8XE – 0.40 (1.0) CuCrZr	25
	3990121	Contact Tip 8XC/8XE – 0.45 (1.2) CuCrZr	25
	3990161	Contact Tip 8XC/8XE – 0.62 (1.6) CuCrZr	25
	3990201	Contact Tip 8XC/8XE – 0.78 (2.0) CuCrZr	25
	3990241	Contact Tip 8XC/8XE – 0.95 (2.4) CuCrZr	25
C	3932710	Tip adapter	10
D	303793-USA	Plastic coated liner black 10ft (3mtr) – for .040 to .045 wire	1
	303794-USA	Plastic coated liner black 13ft (4mtr) – for .040 to .045 wire	1
	303795-USA	Plastic coated liner black 16ft (5mtr) – for .040 to .045 wire	1
	303796-USA	Plastic coated liner black 20ft (6mtr) – for .040 to .045 wire	1
	303763-USA	Plastic coated liner grey 10ft (3mtr) – for .062 wire	1
	303764-USA	Plastic coated liner grey 13ft (4mtr) – for .062 wire	1
	303765-USA	Plastic coated liner grey 16ft (5mtr) – for .062 wire	1
	303766-USA	Plastic coated liner grey 20ft (6mtr) – for .062 wire	1
	303803-USA	Plastic coated liner green 10ft (3mtr) – for .078 to .095 wire	1
	303804-USA	Plastic coated liner green 13ft (4mtr) – for .078 to .095 wire	1
	303805-USA	Plastic coated liner green 16ft (5mtr) – for .078 to .095 wire	1
	303806-USA	Plastic coated liner green 20ft (6mtr) – for .078 to .095 wire	1

Item

Part No.

Description

Pack Qty

3937041

Nozzle conical .55 (14mm Special)

3937045

Nozzle conical .67 (17mm Special)

399010

Contact Tip 8XC/8XE – 0.40 (1.0)

399012

Contact Tip 8XC/8XE – 0.45 (1.2)

399016

Contact Tip 8XC/8XE – 0.62 (1.6)

3990102

Contact Tip 8XC/8XE – 0.40 (1.0) Alu

3990122

Contact Tip 8XC/8XE – 0.45 (1.2) Alu

3990091

Contact Tip 8XC/8XE – 0.35 (0.9) CuCrZr

3990101

Contact Tip 8XC/8XE – 0.40 (1.0) CuCrZr

3990121

Contact Tip 8XC/8XE – 0.45 (1.2) CuCrZr

3990161

Contact Tip 8XC/8XE – 0.62 (1.6) CuCrZr

3990201

Contact Tip 8XC/8XE – 0.78 (2.0) CuCrZr

3990241

Contact Tip 8XC/8XE – 0.95 (2.4) CuCrZr

3932710

Tip adapter

303793-USA

Plastic coated liner black 10ft (3mtr) – for .040 to .045 wire

303794-USA

Plastic coated liner black 13ft (4mtr) – for .040 to .045 wire

303795-USA

Plastic coated liner black 16ft (5mtr) – for .040 to .045 wire

303796-USA

Plastic coated liner black 20ft (6mtr) – for .040 to .045 wire

303763-USA

Plastic coated liner grey 10ft (3mtr) – for .062 wire

303764-USA

Plastic coated liner grey 13ft (4mtr) – for .062 wire

303765-USA

Plastic coated liner grey 16ft (5mtr) – for .062 wire

303766-USA

Plastic coated liner grey 20ft (6mtr) – for .062 wire

303803-USA

Plastic coated liner green 10ft (3mtr) – for .078 to .095 wire

303804-USA

Plastic coated liner green 13ft (4mtr) – for .078 to .095 wire

303805-USA

Plastic coated liner green 16ft (5mtr) – for .078 to .095 wire

303806-USA

Plastic coated liner green 20ft (6mtr) – for .078 to .095 wire

ITEM

PART NO.

DESCRIPTION

PACK QTY

39302145

Swanneck 45°

39302100

Swan neck straight

39502005

PEEK ring to fix nozzle holder (not shown)

39502000

Nozzle holder

39502045

Metal neck 45°

39502050

Metal neck straight

3910000

Handle green/black complete with trigger

39120009

Trigger with spring

3912050

Micro switch complete (not shown)

381920

Cable support set with ball-and-socket joint

259463X8U

Cable assembly 10ft (3mtr)

259464X8U

Cable assembly 13ft (4mtr)

259465X8U

Cable assembly 16ft (5mtr)

259466X8U

Cable assembly 20ft (6mtr)

260018

Leather-sheathing with velcro 6ft (2mtr)

3420032

Fume extraction hose 10ft (3mtr)

3420042

Fume extraction hose 13ft (4mtr)

3420052

Fume extraction hose 16ft (5mtr)

3420062

Fume extraction hose 20ft (6mtr)

398030

Hose connection

398100

Housing (Y-shape) for fume extraction hose

398015

Connection ring

398010

Housing set for central connector

30590012

Central connector

3982000

Adaptor nut

3059100

Tweco tail

30592005

Lincoln tail complete with gas hose

30591050

Miller tail

349200

Switch cable 45cm (Quick connect)

306545

Locking clip (Quick connect)

349130

Tweco switch cable end (Quick connect)

349120

Miller switch cable end (Quick connect)

349110

Lincoln switch cable end (Quick connect)

398110

Hose adapter

406050

Gasflow meter

371208

Tool set (brush and multitool)

371300

Airflow meter Extractor

–

320300

Ceramic dry film spray 400 ml (not shown)

PART NO.	DESCRIPTION	PACK QTY
8XO5060305000	8XE Extractor USA 500AMP 10ft (3mtr) water cooled – 45° (standard)	1
8XO5060405000	8XE Extractor USA 500AMP 13ft (4mtr) water cooled – 45° (standard)	1
8XO5060505000	8XE Extractor USA 500AMP 16ft (5mtr) water cooled – 45° (standard)	1
8XO5060605000	8XE Extractor USA 500AMP 20ft (6mtr) water cooled – 45° (standard)	1
8XO5560305000	8XE Extractor USA 500AMP 10ft (3mtr) water cooled – straight	1
8XO5560405000	8XE Extractor USA 500AMP 13ft (4mtr) water cooled – straight	1
8XO5560505000	8XE Extractor USA 500AMP 16ft (5mtr) water cooled – straight	1
8XO5560605000	8XE Extractor USA 500AMP 20ft (6mtr) water cooled – straight	1

PART NO.

DESCRIPTION

PACK QTY

8XO5060305000

8XE Extractor USA 500AMP 10ft (3mtr) water cooled – 45° (standard)

8XO5060405000

8XE Extractor USA 500AMP 13ft (4mtr) water cooled – 45° (standard)

8XO5060505000

8XE Extractor USA 500AMP 16ft (5mtr) water cooled – 45° (standard)

8XO5060605000

8XE Extractor USA 500AMP 20ft (6mtr) water cooled – 45° (standard)

8XO5560305000

8XE Extractor USA 500AMP 10ft (3mtr) water cooled – straight

8XO5560405000

8XE Extractor USA 500AMP 13ft (4mtr) water cooled – straight

8XO5560505000

8XE Extractor USA 500AMP 16ft (5mtr) water cooled – straight

8XO5560605000

8XE Extractor USA 500AMP 20ft (6mtr) water cooled – straight

ITEM	PART NO.	DESCRIPTION	PACK QTY
A	3937041	Nozzle conical .55 (14mm Special)	5
	3937045	Nozzle conical .67 (17mm Special)	5
B	399010	Contact Tip 8XC/8XE – 0.40 (1.0)	25
	399012	Contact Tip 8XC/8XE – 0.45 (1.2)	25
	399016	Contact Tip 8XC/8XE – 0.62 (1.6)	25
	3990102	Contact Tip 8XC/8XE – 0.40(1.0) Alu	25
	3990122	Contact Tip 8XC/8XE – 0.45 (1.2) Alu	25
	3990091	Contact Tip 8XC/8XE – 0.35 (0.9) CuCrZr	25
	3990101	Contact Tip 8XC/8XE – 0.40 (1.0) CuCrZr	25
	3990121	Contact Tip 8XC/8XE – 0.45 (1.2) CuCrZr	25
	3990161	Contact Tip 8XC/8XE – 0.62 (1.6) CuCrZr	25
C	39327210	Tip adapter	10
D	302535-USA	Plastic coated liner red 10ft (3mtr) – for .035 to .045 wire	1
	302545-USA	Plastic coated liner red 13ft (4mtr) – for .035 to .045 wire	1
	302555-USA	Plastic coated liner red 16ft (5mtr) – for .035 to .045 wire	1
	302565-USA	Plastic coated liner red 20ft (6mtr) – for .035 to .045 wire	1
	303635-USA	Plastic coated liner yellow 10ft (3mtr) – for .062 wire	1
	303645-USA	Plastic coated liner yellow 13ft (4mtr) – for .062 wire	1
	303655-USA	Plastic coated liner yellow 16ft (5mtr) – for .062 wire	1
	303665-USA	Plastic coated liner yellow 20ft (6mtr) – for .062 wire	1

ITEM

PART NO.

DESCRIPTION

PACK QTY

3937041

Nozzle conical .55 (14mm Special)

3937045

Nozzle conical .67 (17mm Special)

399010

Contact Tip 8XC/8XE – 0.40 (1.0)

399012

Contact Tip 8XC/8XE – 0.45 (1.2)

399016

Contact Tip 8XC/8XE – 0.62 (1.6)

3990102

Contact Tip 8XC/8XE – 0.40(1.0) Alu

3990122

Contact Tip 8XC/8XE – 0.45 (1.2) Alu

3990091

Contact Tip 8XC/8XE – 0.35 (0.9) CuCrZr

3990101

Contact Tip 8XC/8XE – 0.40 (1.0) CuCrZr

3990121

Contact Tip 8XC/8XE – 0.45 (1.2) CuCrZr

3990161

Contact Tip 8XC/8XE – 0.62 (1.6) CuCrZr

39327210

Tip adapter

302535-USA

Plastic coated liner red 10ft (3mtr) – for .035 to .045 wire

302545-USA

Plastic coated liner red 13ft (4mtr) – for .035 to .045 wire

302555-USA

Plastic coated liner red 16ft (5mtr) – for .035 to .045 wire

302565-USA

Plastic coated liner red 20ft (6mtr) – for .035 to .045 wire

303635-USA

Plastic coated liner yellow 10ft (3mtr) – for .062 wire

303645-USA

Plastic coated liner yellow 13ft (4mtr) – for .062 wire

303655-USA

Plastic coated liner yellow 16ft (5mtr) – for .062 wire

303665-USA

Plastic coated liner yellow 20ft (6mtr) – for .062 wire

ITEM

PART NO.

DESCRIPTION

PACK QTY

39303045

Swanneck 45°

39303000

Swan neck straight

39502005

PEEK ring to fix nozzle holder (not shown)

39502000

Nozzle holder

39502045

Metal neck 45°

39502050

Metal neck straight

391000

Handle green/black complete with trigger

39120009

Trigger with spring

391250

Micro switch complete (not shown)

381920

Cable support set with ball-and-socket joint

306505

Switch cable 1×0,75mm² per mtr

100

258513X8

Power/water cable 10ft (3mtr)

258514X8

Power/water cable 13ft (4mtr)

258515X8

Power/water cable 16ft (5mtr)

258516X8

Power/water cable 20ft (6mtr)

2585313XE

Outer liner 10ft (3mtr)

2585314XE

Outer liner 13ft (4mtr)

2585315XE

Outer liner 16ft (5mtr)

2585316XE

Outer liner 20ft (6mtr)

258535

Water inlet hose blue per mtr

100

258566

Water outlet hose red per mtr

100

260018

Leather-sheathing with velcro 6ft (2mtr)

3420032

Fume extraction hose 10ft (3mtr)

3420042

Fume extraction hose 13ft (4mtr)

3420052

Fume extraction hose 16ft (5mtr)

3420062

Fume extraction hose 20ft (6mtr)

398030

Hose connection

398100

Housing (Y-shape) for fume extraction hose

398015

Connection ring

398010

Housing set for central connector

350881

Water hose guide

30590002

Central connector

3982000

Adaptor nut

3059100

Tweco tail

30592005

Lincoln tail complete with gas hose

30591050

Miller tail

349200

Switch cable 45cm (Quick connect)

306545

Locking clip (Quick connect)

349130

Tweco switch cable end (Quick connect)

349120

Miller switch cable end (Quick connect)

349110

Lincoln switch cable end (Quick connect)

398110

Hose adapter

258701

Waterstop red

258702

Waterstop blue

406050

Gasflow metre

371208

Tool set (brush and multitool)

371300

Airflow meter Extractor

–

320300

Ceramic dry film spray 400 ml (not shown)

8XE MIG Fume Extraction

8XE MIG Fume Extraction

8XE MIG Fume Extraction

8XE FUME EXTRACTION MIG TORCHES

SAFE & EFFECTIVE EXTRACTION OF WELDING FUMES DIRECTLY AT THE SOURCE

Specifications:​

THE ROBUST CONNECTION BETWEEN SWAN NECK & METAL NECK

ERGONOMIC BALL SOCKET: 30° ANGLE AND 360° ROTATABLE

UNIQUE NOZZLE DESIGN FOR OPTIMAL PERFORMANCE AND DURABILITY

8XE FUME EXTRACTOR LINE

8XE MIG MINI 200

8XE MIG MINI 250

8XE MIG MINI 320

8XE MIG REGULAR 300

8XE MIG REGULAR 400

8XE MIG REGULAR 500

8XE MIG MINI 200

8XE MIG MINI 250

8XE MIG REGULAR 400

8XE MIG REGULAR 500

Stay updated, Enter your email to receive the latest news and updates

Products

Locations

Policies

Contact Us

Specifications:

ERGONOMIC BALL SOCKET:
30° ANGLE AND 360° ROTATABLE
